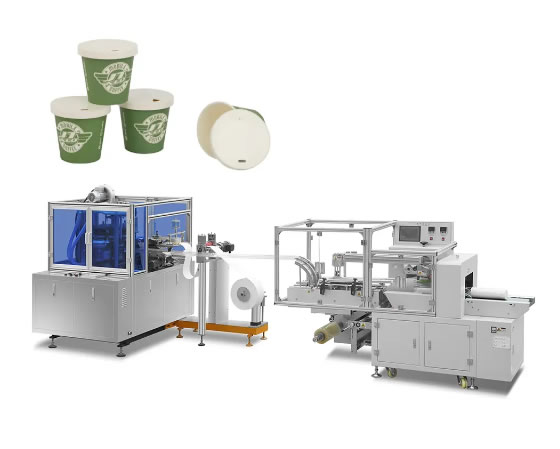

BZJ series paper cover packaging machine

Product Introduction :

BZJ series paper cover packaging machine is mainly used to match DPJ-100, DPJ-145 and DPJ-200 automatic paper cover machines. BZJ series full-automatic paper cover high-speed pillow type packaging machine is mainly suitable for the full-automatic packaging of single sheet forming paper cover, composite paper cover, square paper plastic cover and other paper covers. It plays the role of moisture-proof and light proof, and improves the grade of products. This machine can save about 20% of the cost compared with manual bag making packaging. Through modular design, packaging products such as paper cups, medicine boxes and so on can be modified to a certain extent.

Main Advantage Features:

1. Compact and reasonable structure, stable and advanced performance, easy to operate and understand.
2. Double frequency conversion control, stepless speed change, bag length is set and cut immediately, no need to adjust empty travel, one step in place, save time and film.
3. It adopts international famous electrical components, PLC control, touch man-machine interface, and parameter setting is convenient and fast.
4. The fault diagnosis prompt is clear and user-friendly.
5. High precision slide cylinder push positioning, adjustable film length.
6. PID temperature adjustable, suitable for all kinds of material color film, improve the sealing quality.
7. It is equipped with positioning stop function, no knife sticking and no film wasting.
8. The transmission system is simple, reliable and easy to maintain.
9. All the control is realized by software, which is convenient for function adjustment and technology upgrade, and can adapt to the production needs of different periods.

Main Technical Data:

Film width: max440mm
Film diameter: max400mm
Make bag size: Φ75-Φ140X300-800mm
speed: 1-8bag/min
Voltage: AC220V/380V 50/60HZ
Power: 2.4KW
Size: 2600mmX900mmX1200mm
Weight: 800kg
