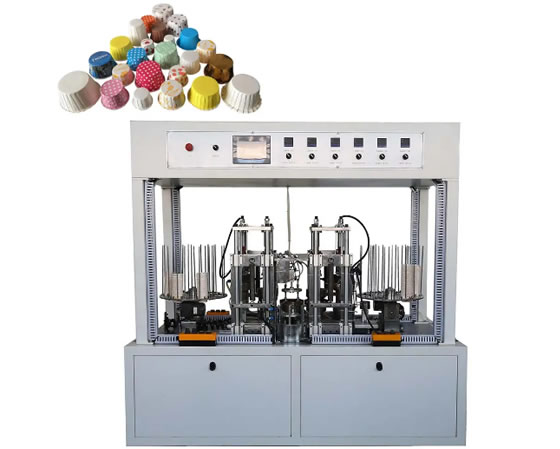

JKB-C Automatic intelligent double working station roll cup machine

BZJ series paper cover packaging machine

Product Introduction :

1. Alarm system with sensors.
2. Change the,25 normal steel shaft to 0 30 imported steel shaftto be strengthened, longer life and more stable.
3. JKB-C Automatic cake paper cup forming machine(edge cup machine)is an innovative multi station automatic molding machine in the ordinary type of cake paper cup forming machine based on. It by using the microcomputer control system and automatic continuous paper, molding, curling, counting collection process, production of cardboard cake cups, muffin cups, coffee cups, medical and cups paper container forming equipment.

Main Technical Data:

Type: JKB-C
Cup size:0.5oz-5oz (different size mold exchanged)
Suitable paper materialCapacity: 60-1 SOg/m2PEW coated paper,greaseproof paper,silicon coated paper 30-40pcs/min
Weight: 1000KG
Total power: 4kw
Voltage requirement: 380V/50HZ 3 phase ( please inform us your power in advanced)
Overall dimension: 2000(L)X1200(W)X1600(H) mm
Gas source requirement: Air pressure 0.4Mpa;Air out-put:0.4m3/min (Need to buy air compressor)
A：top diameter:Min 20mm Max 80mm B： bottom diameter: Min 15mm Max 70mm
C：total height:Min 15mm Max45mm E：rim diameter: Usually 02
