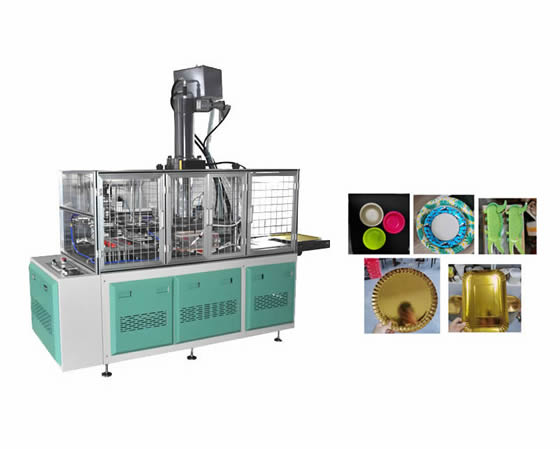

ZDJ800 full paper plate forming machine

BZJ series paper cover packaging machine

Product Introduction :

ZDJ800 all-self paper plate forming machine is developed and designed according to market demand, mainly for conventional paper plates, shaped paper plates, deep paper bowls, and enlarged and thickened paper plates. ML800 recombines the principle of hydraulic and mechanical, paper feed servo motor control, accurate in place, the manipulator closes the stack. Compared with the traditional automatic paper plate machine, the ML800 has a higher output rate, more convenient operation and maintenance, and more stable. ML800 is widely used in the production of base paper or aluminum foil as raw materials, and can produce different specifications by replacing molds, round plates and square plates, especially deep paper plates, and overcome the problem of difficult collection.

Main Technical Data:

Model: ZDJ800
Paper size: Disc diameter 100-420mm Square plate 450(L) x 400(W)mm
Speed: 15-20 PCS/min
Power requirements: 380V 50Hz;
Gross power: 8KW
Weight: 2000Kg
Machine size: 2600×1100×2100mm
Raw material: 100-3500g/m2 (Base paper, white cardboard, white cardboard, aluminum foil or other heavy gsm paper)
Air source: Working pressure 0.4Mpa Working air volume 0.3m3/min
Cylinder pressure: 20-30 t

Samples Show
